Vaulted Arch Perimeter Fence
Price range: $621.00 through $2,976.00
Vaulted Arch Perimeter Fence features repeating interlaced arches formed from 1/2″ square steel bars within a welded rectangular architectural frame. Available in multiple lengths, heights, finishes and post mounting configurations.
CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |
PRODUCT DESCRIPTION
Vaulted Arch Perimeter Fence

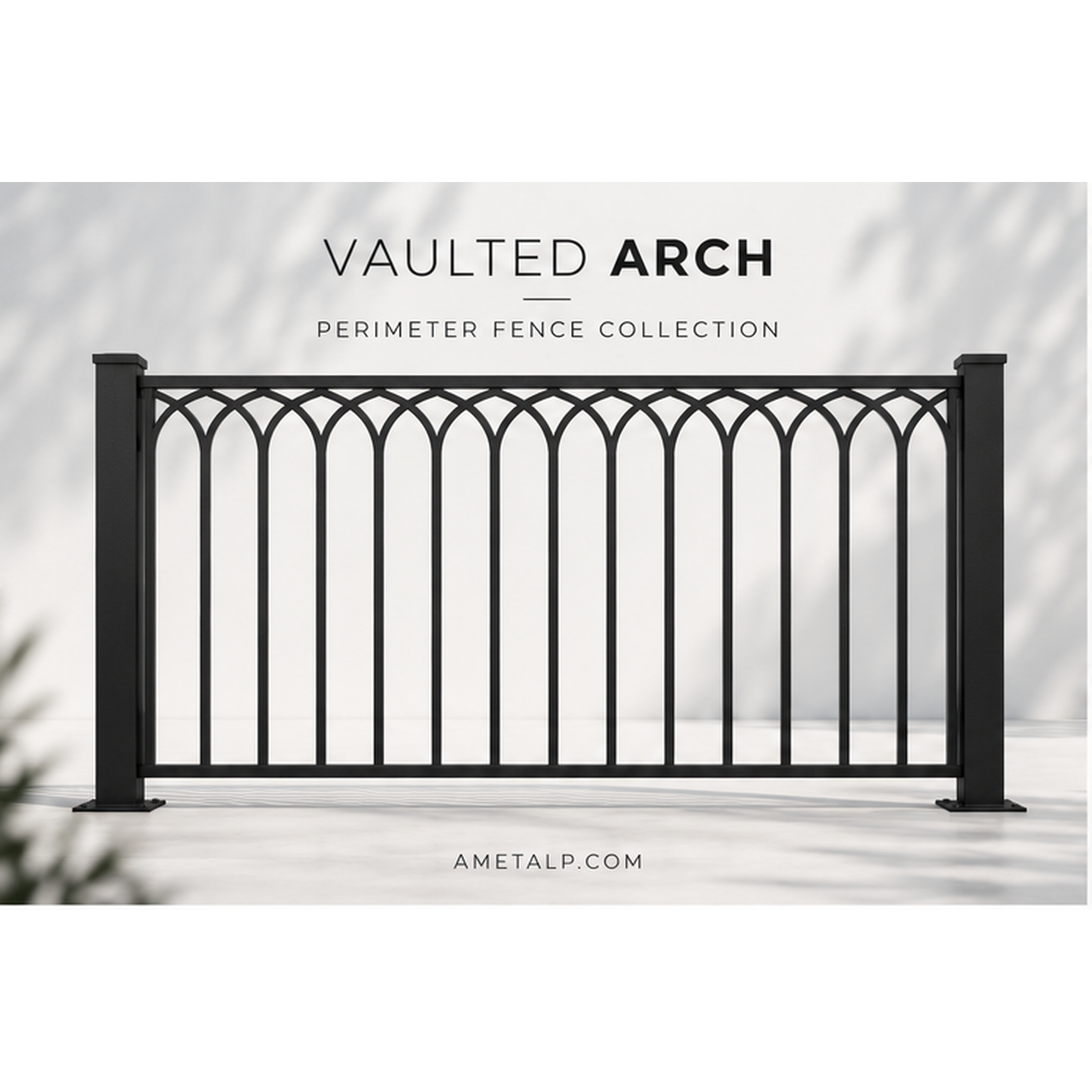

Vaulted Arch Perimeter Fence is a welded steel fence defined by a repeating series of interlaced arch forms created from 1/2″ square steel bars. The vaulted pattern develops across the upper portion of the panel while long vertical members continue below, creating a distinctive combination of curved architectural geometry and disciplined vertical repetition.
The exterior perimeter remains rectangular and restrained, allowing the repeating arches to become the primary visual feature. As a result, Vaulted Arch provides a decorative architectural character without relying on spearheads, finials or separate ornamental attachments.
Vaulted Arch Perimeter Fence Design
Interlaced square steel bars create a continuous vaulted pattern
The defining characteristic of Vaulted Arch is the repeating upper pattern formed by 1/2″ square steel members that rise from the vertical field and transition into overlapping arch forms.
The individual arch elements repeat continuously across the width of the fence panel. Their overlapping geometry creates visual depth while maintaining a consistent architectural rhythm from one side of the frame to the other.
Below the vaulted pattern, the steel members continue vertically toward the lower frame. This transition between curved and straight geometry gives the design its characteristic Gothic-inspired appearance without changing the rectangular exterior profile of the panel.
Opening limitations and other dimensional requirements can vary according to the intended application and local regulations. Therefore, the responsible project professional must verify applicable requirements before fabrication and installation.
Built for the Project
Standard panel sizes provide the starting point —
custom dimensions remain available for project-specific conditions.
AMP offers Vaulted Arch in multiple standard panel lengths and fence heights. However, when an architectural layout requires a different configuration, our fabrication team can review custom panel dimensions, system heights, directional changes and other project-specific requirements before production.
How Vaulted Arch Is Manufactured
1. 1.5″ Tubular Steel Perimeter Frame
First, AMP cuts and squares the tubular steel components that establish the rectangular perimeter of the fence panel. The upper rail, lower rail and side members are assembled to create the primary welded frame and maintain the required panel geometry.
2. 1/2″ Square Steel Members
Next, 1/2″ square steel members are positioned throughout the panel. These members establish both the long vertical field and the upper architectural pattern that distinguishes Vaulted Arch.
3. Formed Vaulted Arches
The upper portions of the steel members are formed into repeating arches. Adjacent elements overlap visually to create the continuous interlaced vaulted pattern across the fence panel.
4. Controlled Repetition and Alignment
AMP positions the individual arch elements and vertical members according to the Vaulted Arch layout so the repeating pattern remains balanced across the complete welded assembly.
5. Surface Preparation and Finish
Finally, AMP prepares the welded steel assembly and exposed surfaces for the selected exterior finish. The completed fence panel then receives the specified architectural powder-coated color.
Fence Posts Are Sold Separately
Vaulted Arch fence panels do not include posts.
Complete the fence system by ordering the required End, Line, Corner or Custom Angle Posts separately. In addition, choose either Set-In-Ground or Base-Plate mounting according to the installation conditions.

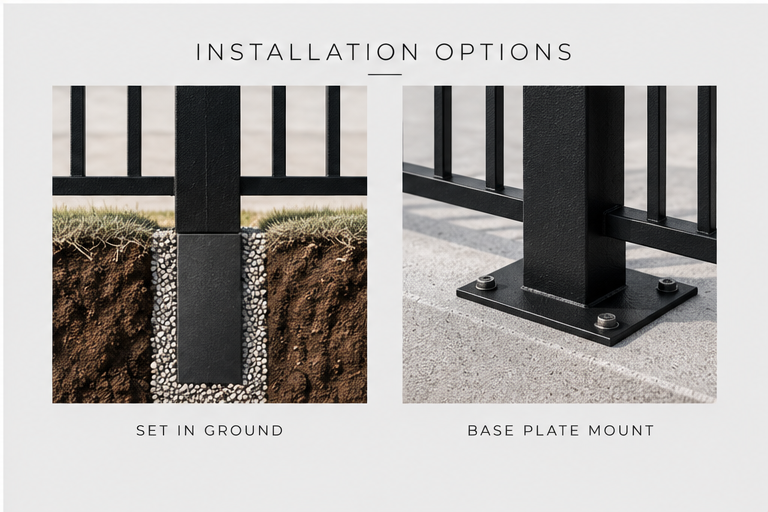

Choose Your Post Mounting
Vaulted Arch panels work with two AMP post mounting systems. Select the configuration that corresponds with the installation surface, fence height and final project conditions.
Set-In-Ground Post
Designed for installations where the steel post extends below the finished surface and continues into a project-specific concrete footing.
New construction
New concrete footings
Landscape and soil conditions
Base-Plate Post
Features a welded steel mounting plate for mechanical anchoring to a suitable existing concrete surface.
Existing concrete slabs
Concrete curbs
Existing hardscape
Mounting conditions vary by project. Therefore, the installer or responsible design professional must confirm footing dimensions, anchor selection, embedment, substrate capacity and other installation requirements before installation.
96″ fence height: Base-Plate mounting is not offered as a standard catalog configuration. Use the appropriate Set-In-Ground post system or contact AMP regarding project-specific requirements.
Choose the Correct Post Type
Each fence layout requires a different combination of posts. AMP therefore offers End, Line, Corner and Custom Angle configurations according to the fence layout and selected mounting system.
End Post
Used to begin or terminate a fence run.
Line Post
Used between two adjacent fence panels in a straight run.
Corner Post
Used for standard directional changes in the fence run.
Custom Angle
Fabricated for project-specific directional changes where a standard corner does not match the required angle.
Available Panel Sizes
Standard Panel Lengths
36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″
Available Fence Heights
36″ · 48″ · 60″ · 72″ · 96″
Overall Post-to-Post Dimension
The selected fence length represents the finished overall dimension from post to post, not only the width of the interior panel frame. This allows the ordered system dimension to coordinate directly with the intended fence layout.
Custom Sizes
Need a different panel length or fence height? AMP can review custom dimensions according to project requirements and manufacturing feasibility.
Post Construction by Fence Configuration
The required post construction is coordinated with the selected Vaulted Arch panel length, fence height and mounting method. Customers select the required fence configuration while AMP assigns the corresponding post specification for the system.
Post wall thickness and construction may increase as panel length or fence height increases. The post specification associated with the selected product variation should therefore be used when completing the fence system.
Vaulted Arch Specifications
| Panel Frame | 1.5″ tubular steel perimeter frame |
| Pattern Members | 1/2″ square steel bars |
| Upper Pattern | Repeating interlaced vaulted arches |
| Lower Field | Continuous vertical steel members |
| Exterior Profile | Rectangular welded perimeter frame |
| Standard Lengths | 36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″ |
| Available Heights | 36″ · 48″ · 60″ · 72″ · 96″ |
| Length Measurement | Finished overall post-to-post width |
| Post Types | End · Line · Corner · Custom Angle |
| Post Mounting | Set-In-Ground · Base-Plate |
| 96″ Height Mounting | Set-In-Ground standard catalog configuration |
| Available Finishes | Black Textured · Bronze · White Gloss · Dark Gray (Special Order) |

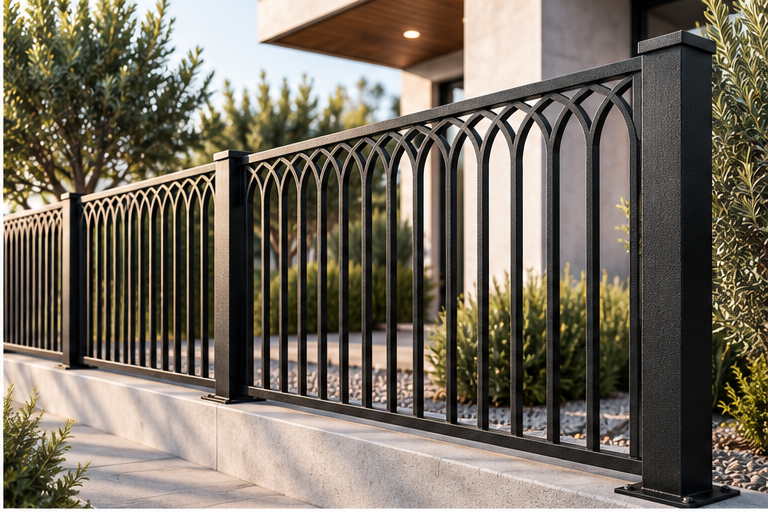

Designed for Perimeter Applications
Vaulted Arch combines curved architectural detailing with a disciplined rectangular fence system. Therefore, it works particularly well where the fence is intended to contribute visual character while maintaining an open steel perimeter.
Finish Options
Vaulted Arch is available in four architectural finish families designed to coordinate with surrounding buildings, gates, hardscape and landscape elements.
|
Black Textured
|
Bronze
|
White Gloss
|
Dark Gray
Special Order
|
Project and Code Requirements
Opening Requirements
Opening limitations and other dimensional requirements can vary according to the intended application and local regulations. Therefore, the contractor, installer or responsible design professional must verify that the selected Vaulted Arch configuration is appropriate for the specific project before fabrication and installation.
Pool Barrier Applications
Pool barrier requirements vary by jurisdiction and may include minimum fence height, maximum openings, gate configuration, self-closing or self-latching hardware and other project-specific provisions.
Consequently, Vaulted Arch should not be represented as universally compliant for pool-barrier applications. The responsible project professional must verify the complete fence and gate system against the requirements applicable to the specific installation.
Structural and Installation Verification
Footing dimensions, anchor selection, embedment, post spacing, substrate capacity, structural loads and attachment requirements depend on the final installation conditions.
The responsible project professional must confirm these requirements whenever the installation conditions or applicable regulations require structural or engineering review.
Custom Vaulted Arch Configurations
Standard dimensions simplify ordering. However, AMP can review custom panel lengths, system heights and project-specific configurations when the architectural layout requires something different.
Custom corners, non-standard fence runs, unique site conditions or project-specific angles may require different panel dimensions or post configurations. In that case, send AMP the project dimensions before ordering.
Build Your Vaulted Arch Fence System
Start by selecting the required Vaulted Arch panels. Then, complete the fence system with the appropriate End, Line, Corner or Custom Angle Posts for the selected installation method.
Not sure which posts or quantities your fence run requires? Send AMP the layout, panel lengths, fence height and installation conditions for assistance.
Architectural Metal Products
Custom architectural metalwork for residential, commercial and architectural projects.
Protective Primer + Powder Coat Finish
Before the final powder-coat finish is applied, this AMP steel product receives a protective primer coat. The primer improves coating adhesion and adds an additional layer of corrosion protection as part of AMP's two-stage exterior finish system.
