Ringline Perimeter Fence
Price range: $761.00 through $3,347.00
Ringline Perimeter Fence combines a repeating band of circular steel rings, vertical pickets and decorative knuckle accents within a welded architectural frame. Available in multiple lengths, heights, finishes and post mounting configurations.
CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |
PRODUCT DESCRIPTION

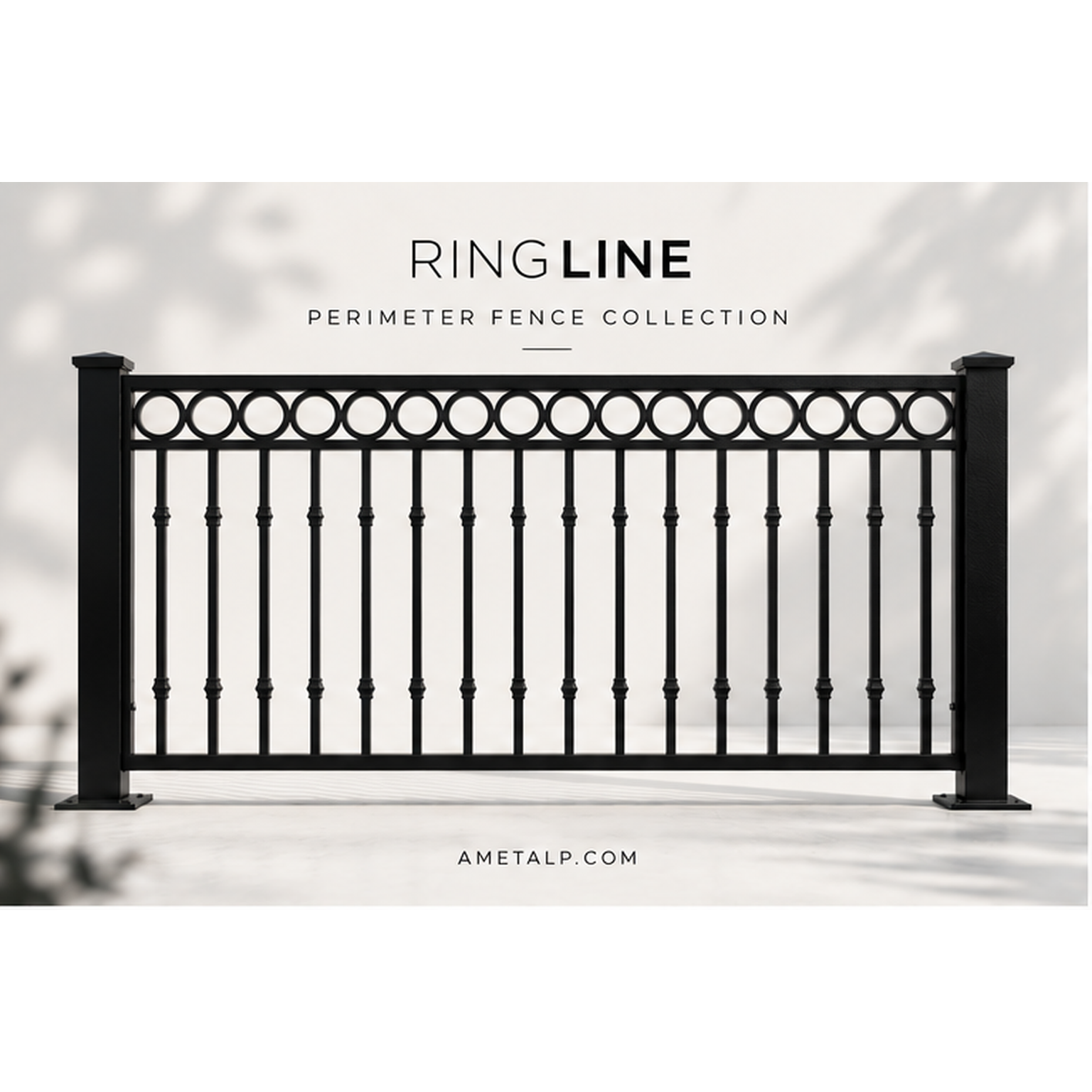

Ringline Perimeter Fence
Ringline Perimeter Fence is a welded steel fence defined by a continuous upper band of repeating circular steel rings combined with a disciplined field of vertical steel pickets below. The circular pattern introduces a distinctive ornamental element while the rectangular perimeter frame keeps the overall composition clean, balanced and architectural.
Selected vertical members incorporate decorative knuckle accents that reinforce the traditional metalwork character of the design without overpowering the repeating ring pattern. As a result, Ringline provides a refined alternative for projects that require more visual detail than a conventional vertical-picket fence.
Ringline Perimeter Fence Design
Repeating circular rings create a distinctive upper architectural band
The defining feature of Ringline is the continuous sequence of circular steel rings positioned across the upper portion of the fence panel. Each ring aligns with the surrounding pattern to create a consistent decorative rhythm from one side of the panel to the other.
Below the ring band, vertical steel pickets extend toward the lower frame member. This transition from curved geometry above to straight vertical lines below gives Ringline its balanced combination of ornamental and architectural character.
Decorative knuckle details on selected vertical members add another layer of traditional steelwork while allowing the circular ring pattern to remain the primary visual feature.
Opening limitations and other dimensional requirements can vary according to the intended application and local regulations. Therefore, the responsible project professional must verify applicable requirements before fabrication and installation.
Built for the Project
Standard panel sizes provide the starting point —
custom dimensions remain available for project-specific conditions.
AMP offers Ringline in multiple standard panel lengths and fence heights. However, when a project requires a different configuration, our fabrication team can review custom panel dimensions, system heights, directional changes and other project-specific requirements before production.
How Ringline Is Manufactured
1. 1.5″ Tubular Steel Perimeter Frame
First, AMP cuts and squares the tubular steel components that establish the exterior perimeter of the fence panel. The upper rail, lower rail and side members are assembled to create the primary welded frame and maintain the required panel geometry.
The standard panel construction uses a 1.5″ tubular steel perimeter frame.
2. Formed Circular Steel Rings
Next, steel components are formed into the circular elements that define Ringline. These rings are positioned repeatedly across the upper portion of the panel to create the continuous ornamental band.
3. Vertical Steel Pickets
Vertical steel pickets are then distributed throughout the lower field of the panel. Their straight geometry creates a visual counterpoint to the curved ring pattern above while maintaining consistent spacing across the assembly.
4. Decorative Knuckle Details
Selected vertical members receive decorative knuckle accents according to the Ringline pattern. Their controlled placement adds traditional metalwork character without disrupting the overall symmetry of the fence.
5. Surface Preparation and Finish
Finally, AMP prepares the completed welded steel assembly and exposed surfaces for the selected exterior finish. The panel then receives the specified architectural powder-coated color.
Fence Posts Are Sold Separately
Ringline fence panels do not include posts.
Complete the fence system by ordering the required End, Line, Corner or Custom Angle Posts separately. In addition, choose either Set-In-Ground or Base-Plate mounting according to the installation conditions.

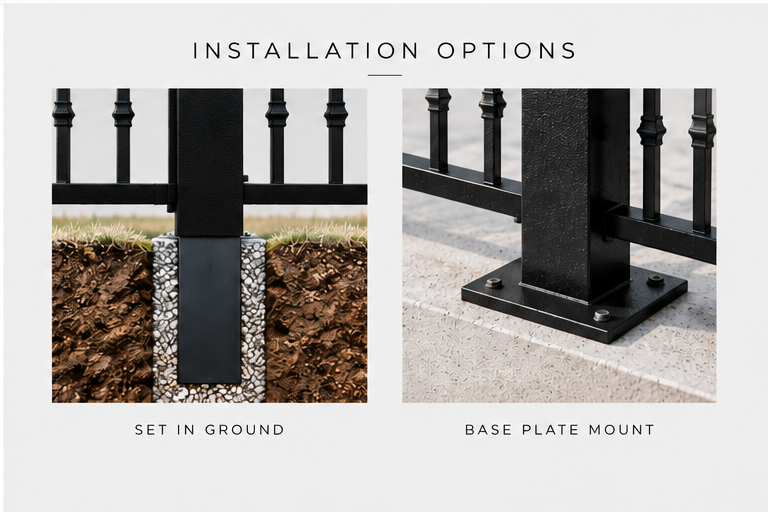

Choose Your Post Mounting
Ringline panels work with two AMP post mounting systems. Select the configuration that best matches the installation surface, fence height and final project conditions.
Set-In-Ground Post
Designed for installations where the steel post extends below the finished surface and continues into a project-specific concrete footing.
New construction
New concrete footings
Landscape and soil conditions
Base-Plate Post
Features a welded steel mounting plate for mechanical anchoring to a suitable existing concrete surface.
Existing concrete slabs
Concrete curbs
Existing hardscape
Mounting conditions vary by project. Therefore, the installer or responsible design professional must confirm footing dimensions, anchor selection, embedment, substrate capacity and other installation requirements before installation.
96″ fence height: Base-Plate mounting is not offered as a standard catalog configuration. Use the appropriate Set-In-Ground post system or contact AMP regarding project-specific requirements.
Choose the Correct Post Type
Each fence layout requires a different combination of posts. AMP therefore offers End, Line, Corner and Custom Angle configurations according to the fence layout and selected mounting system.
End Post
Used to begin or terminate a fence run.
Line Post
Used between two adjacent fence panels in a straight run.
Corner Post
Used for standard directional changes in the fence run.
Custom Angle
Fabricated for project-specific directional changes where a standard corner does not match the required angle.
Available Panel Sizes
Standard Panel Lengths
36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″
Available Fence Heights
36″ · 48″ · 60″ · 72″ · 96″
Overall Post-to-Post Dimension
The selected fence length represents the finished overall dimension from post to post, not only the width of the interior panel frame. This allows the ordered system dimension to coordinate directly with the intended fence layout.
Custom Sizes
Need a different panel length or fence height? AMP can review custom dimensions according to project requirements and manufacturing feasibility.
Post Construction by Fence Configuration
The required post construction is coordinated with the selected Ringline panel length, fence height and mounting method. Customers select the required fence configuration while AMP assigns the corresponding post specification for the system.
Post wall thickness and construction may increase as panel length or fence height increases. The post specification associated with the selected product variation should therefore be used when completing the fence system.
Ringline Specifications
| Panel Frame | 1.5″ tubular steel perimeter frame |
| Upper Pattern | Continuous repeating circular steel rings |
| Lower Field | Vertical steel picket configuration |
| Decorative Detail | Knuckle accents on selected vertical members |
| Standard Lengths | 36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″ |
| Available Heights | 36″ · 48″ · 60″ · 72″ · 96″ |
| Length Measurement | Finished overall post-to-post width |
| Post Types | End · Line · Corner · Custom Angle |
| Post Mounting | Set-In-Ground · Base-Plate |
| 96″ Height Mounting | Set-In-Ground standard catalog configuration |
| Available Finishes | Black Textured · Bronze · White Gloss · Dark Gray (Special Order) |
Designed for Perimeter Applications
Ringline combines a distinctive circular ornamental band with disciplined vertical geometry. Therefore, it works particularly well where a project calls for decorative architectural character without the visual complexity of heavily ornamented traditional fencing.
Finish Options
Ringline is available in four architectural finish families designed to coordinate with surrounding buildings, gates, hardscape and landscape elements.
|
Black Textured
|
Bronze
|
White Gloss
|
Dark Gray
Special Order
|
Project and Code Requirements
Opening Requirements
Opening limitations and other dimensional requirements can vary according to the intended application and local regulations. Therefore, the contractor, installer or responsible design professional must verify that the selected Ringline configuration is appropriate for the specific project before fabrication and installation.
Pool Barrier Applications
Pool barrier requirements vary by jurisdiction and may include minimum fence height, maximum openings, gate configuration, self-closing or self-latching hardware and other project-specific provisions.
Consequently, Ringline should not be represented as universally compliant for pool-barrier applications. The responsible project professional must verify the complete fence and gate system against the requirements applicable to the specific installation.
Structural and Installation Verification
Footing dimensions, anchor selection, embedment, post spacing, substrate capacity, structural loads and attachment requirements depend on the final installation conditions.
The responsible project professional must confirm these requirements whenever the installation conditions or applicable regulations require structural or engineering review.
Custom Ringline Configurations
Standard dimensions simplify ordering. However, AMP can review custom panel lengths, system heights and project-specific configurations when the architectural layout requires something different.
Custom corners, non-standard fence runs, unique site conditions or project-specific angles may require different panel dimensions or post configurations. In that case, send AMP the project dimensions before ordering.
Build Your Ringline Fence System
Start by selecting the required Ringline panels. Then, complete the fence system with the appropriate End, Line, Corner or Custom Angle Posts for the selected installation method.
Not sure which posts or quantities your fence run requires? Send AMP the layout, panel lengths, fence height and installation conditions for assistance.
Architectural Metal Products
Custom architectural metalwork for residential, commercial and architectural projects.
Protective Primer + Powder Coat Finish
Before the final powder-coat finish is applied, this AMP steel product receives a protective primer coat. The primer improves coating adhesion and adds an additional layer of corrosion protection as part of AMP's two-stage exterior finish system.
