PRODUCT DESCRIPTION
Level Row Perimeter Fence

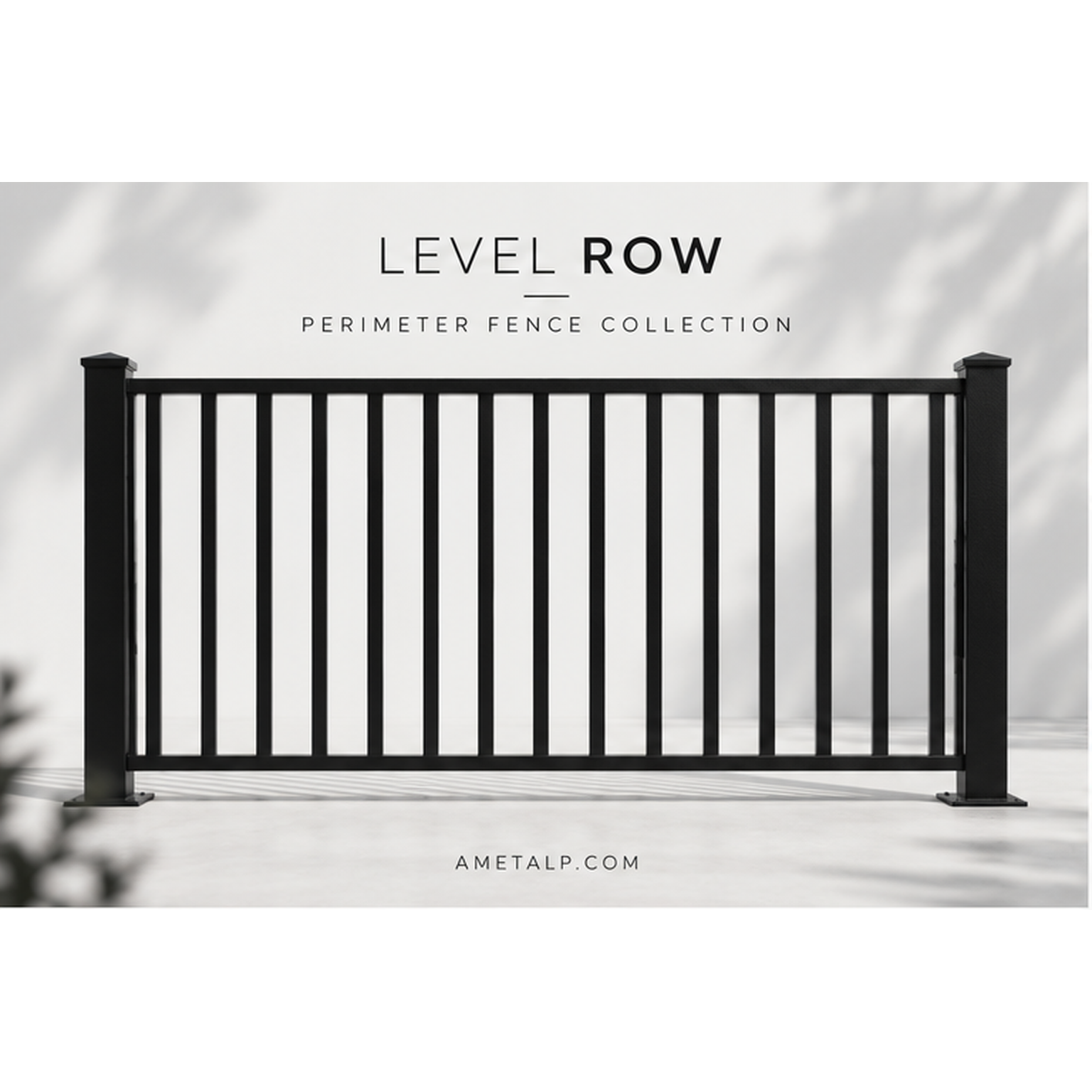

Level Row is a clean architectural steel perimeter fence built around a continuous rhythm of vertical tubular pickets. The pickets run directly from the upper rail to the lower rail, creating a simple and uninterrupted composition without secondary horizontal members.
As a result, Level Row provides a restrained perimeter design for residential, commercial and architectural applications. AMP manufactures each panel according to the selected length, system height and finish.
Level Row Design
A continuous vertical rhythm with minimal visual interruption
Level Row uses 1″ tubular steel pickets positioned vertically inside a 1.5″ tubular steel perimeter frame. Each picket connects directly between the upper and lower frame members.
In addition, the design eliminates secondary horizontal rails from the primary panel composition. Therefore, the vertical members remain the dominant architectural element from one end of the panel to the other.
The upper and lower edges remain visually aligned with the surrounding frame. Consequently, Level Row works especially well where the project calls for a straightforward, contemporary perimeter system without ornamental detailing.
Built for the Project
Standard panel sizes provide the starting point —
custom dimensions remain available for project-specific conditions.
However, AMP does not limit Level Row to one fixed configuration. When required, we can review custom panel lengths, fence heights and other project-specific dimensional requirements before fabrication.
How Level Row Is Manufactured
1. 1.5″ Tubular Steel Frame
First, AMP cuts and squares the 1.5″ tubular steel frame components. Then, our fabrication team assembles the upper rail, lower rail and side members to establish the panel geometry.
The complete perimeter frame uses 16-gauge tubular steel.
2. 1″ Vertical Tubular Pickets
Next, AMP positions the 1″ tubular steel pickets throughout the panel. The pickets also use 16-gauge steel and extend directly between the upper and lower frame members.
Because the design does not require a secondary decorative rail, the vertical pickets create a consistent architectural rhythm across the complete panel.
3. Additional Center Reinforcement
For fence heights of 60″ and above, AMP incorporates an additional center reinforcement into the panel configuration. Therefore, taller Level Row panels receive additional support within the assembly.
4. Surface Preparation and Finish
Finally, AMP prepares the welded steel assembly and exposed surfaces for the selected exterior finish. The completed panel then receives the specified architectural color.
Fence Posts Are Sold Separately
Level Row fence panels do not include posts.
Complete the fence system by ordering the required End, Line or Corner Posts separately. In addition, choose either Set-In-Ground or Base-Plate mounting according to the installation conditions.

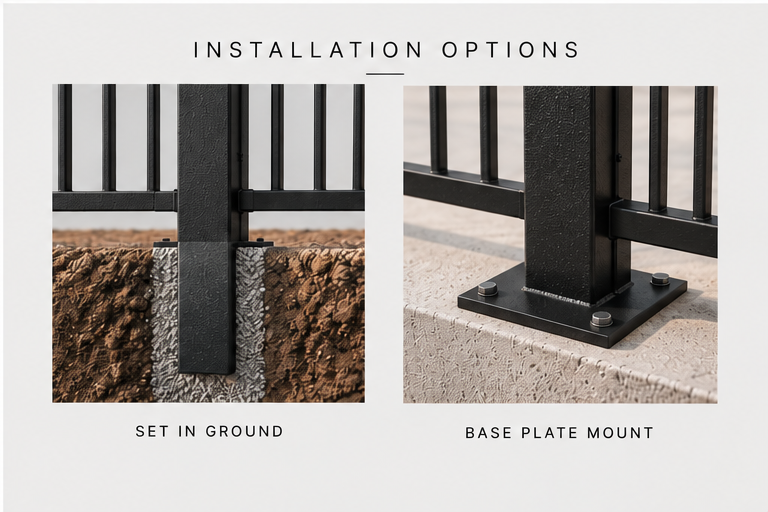

Choose Your Post Mounting
Level Row panels work with two post mounting systems. Therefore, select the post configuration that best matches the installation surface and project conditions.
Set-In-Ground Post
Designed for installations where the steel post extends below the finished surface and continues into a project-specific concrete footing.
New construction
New concrete footings
Landscape and soil conditions
Base-Plate Post
Features a welded steel mounting plate for mechanical anchoring to a suitable existing concrete surface.
Existing concrete slabs
Concrete curbs
Existing hardscape
Mounting conditions vary by project. Therefore, the installer or responsible design professional must confirm footing dimensions, anchor selection, embedment, substrate capacity and other installation requirements before installation.
Choose the Correct Post Type
Each fence layout requires a different combination of posts. As a result, AMP offers End, Line and Corner Posts for both mounting systems.
End Post
Used to begin or terminate a fence run.
Line Post
Used between two adjacent fence panels in a straight run.
Corner Post
Used where the fence changes direction. Specify the required project angle when ordering.
For example, a standalone panel generally uses an End Post at each side. However, continuous fence runs use Line Posts between adjacent panels. Directional changes require the appropriate Corner Post.
Available Panel Sizes
Standard Panel Lengths
36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″
Available Fence Heights
36″ · 48″ · 60″ · 72″ · 96″
Custom Sizes
Need a different panel length or fence height? In that case, AMP can review custom dimensions according to the project requirements and manufacturing feasibility.
Post Construction by Fence Height
AMP increases the post wall thickness as the selected fence height increases. Therefore, customers select the required system height while AMP provides the corresponding post construction.
| Fence Height | Post Construction |
|---|---|
| 4′ – 5′ | 2″ tubular steel · 14 ga |
| 6′ | 2″ tubular steel · 11 ga |
| 8′ | 2″ tubular steel · 3/16″ wall |
Level Row Specifications
| Panel Frame | 1.5″ tubular steel · 16 ga |
| Vertical Pickets | 1″ tubular steel · 16 ga |
| Panel Design | Continuous vertical pickets · no secondary decorative rail |
| Center Reinforcement | Included on fence heights of 60″ and above |
| Standard Lengths | 36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″ |
| Available Heights | 36″ · 48″ · 60″ · 72″ · 96″ |
| Post Types | End Post · Line Post · Corner Post |
| Post Mounting | Set-In-Ground · Base-Plate |
| Available Finishes | Black · White · Dark Gray · Bronze |
Designed for Perimeter Applications
Level Row combines straightforward vertical geometry with a fully welded tubular steel panel. Therefore, the design works well across a broad range of architectural perimeter concepts.
Finish Options
Level Row is available in four architectural finish families to coordinate with surrounding building and landscape elements.
|
Black
|
White
|
Dark Gray
|
Bronze
|
Project and Code Requirements
Pool Barrier Applications
Pool barrier requirements vary by jurisdiction and may include minimum fence height, opening limitations, gate configuration, self-closing or self-latching hardware and other project-specific provisions.
Therefore, Level Row should not be represented as universally compliant for pool-barrier applications. The contractor, installer or responsible design professional must verify the complete fence and gate system against the requirements that apply to the specific project.
Structural and Installation Verification
In addition, footing dimensions, anchor selection, embedment, post spacing, substrate capacity, structural loads and attachment requirements depend on the final installation conditions.
Consequently, the responsible project professional must confirm these requirements before fabrication and installation whenever project conditions or applicable regulations require engineering review.
Custom Level Row Configurations
Standard dimensions simplify ordering. However, AMP can review custom panel lengths, system heights and project-specific configurations when the architectural layout requires something different.
For example, custom corners, non-standard fence runs or unique site conditions may require different panel dimensions or post configurations. In that case, send AMP the project dimensions before ordering.
Build Your Level Row Fence System
Start by selecting the required Level Row panels. Then, complete the fence system with the appropriate End, Line and Corner Posts for the selected installation method.
Not sure which posts or quantities your fence run requires? Send AMP the layout, panel lengths, fence height and installation conditions for assistance.
Architectural Metal Products
Custom architectural metalwork for residential, commercial and architectural projects.
Protective Primer + Powder Coat Finish
Before the final powder-coat finish is applied, this AMP steel product receives a protective primer coat. The primer improves coating adhesion and adds an additional layer of corrosion protection as part of AMP's two-stage exterior finish system.
