Perimeter Fence Posts – Base Plate
Price range: $126.37 through $527.22
Base Plate Fence Posts provide a welded steel mounting solution for AMP Perimeter Fence systems installed over suitable concrete surfaces. Available as End, Line, Corner and Custom Angle posts in multiple heights and architectural finishes.
CUSTOM SIZE AVAILABLE | CUSTOM STYLE AVAILABLE | REQUEST TO QUOTE | CUSTOM SIZE AVAILABLE | CUSTOM STYLE AVAILABLE | REQUEST TO QUOTE |CUSTOM SIZE AVAILABLE | CUSTOM STYLE AVAILABLE | REQUEST TO QUOTE | CUSTOM SIZE AVAILABLE | CUSTOM STYLE AVAILABLE | REQUEST TO QUOTE |
PRODUCT DESCRIPTION

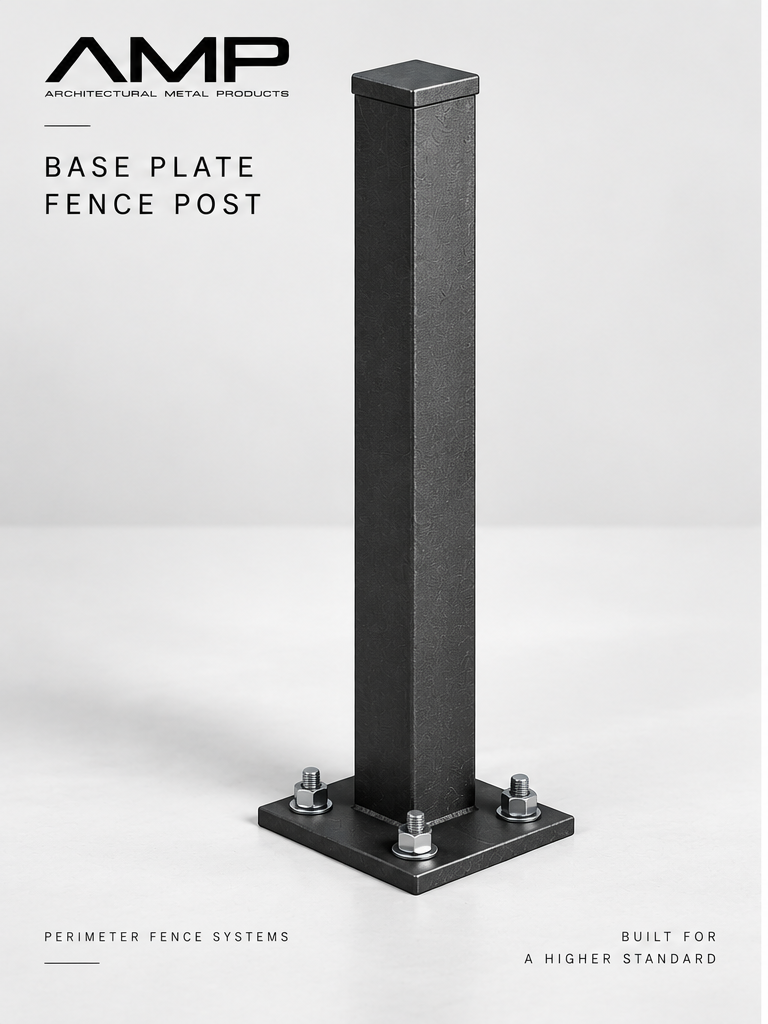

Base Plate Fence Posts for AMP Perimeter Fence Systems
AMP Base Plate Fence Posts are designed to complete Architectural Metal Products perimeter fence systems where the posts must be mechanically anchored to a suitable concrete surface rather than embedded directly into the ground.

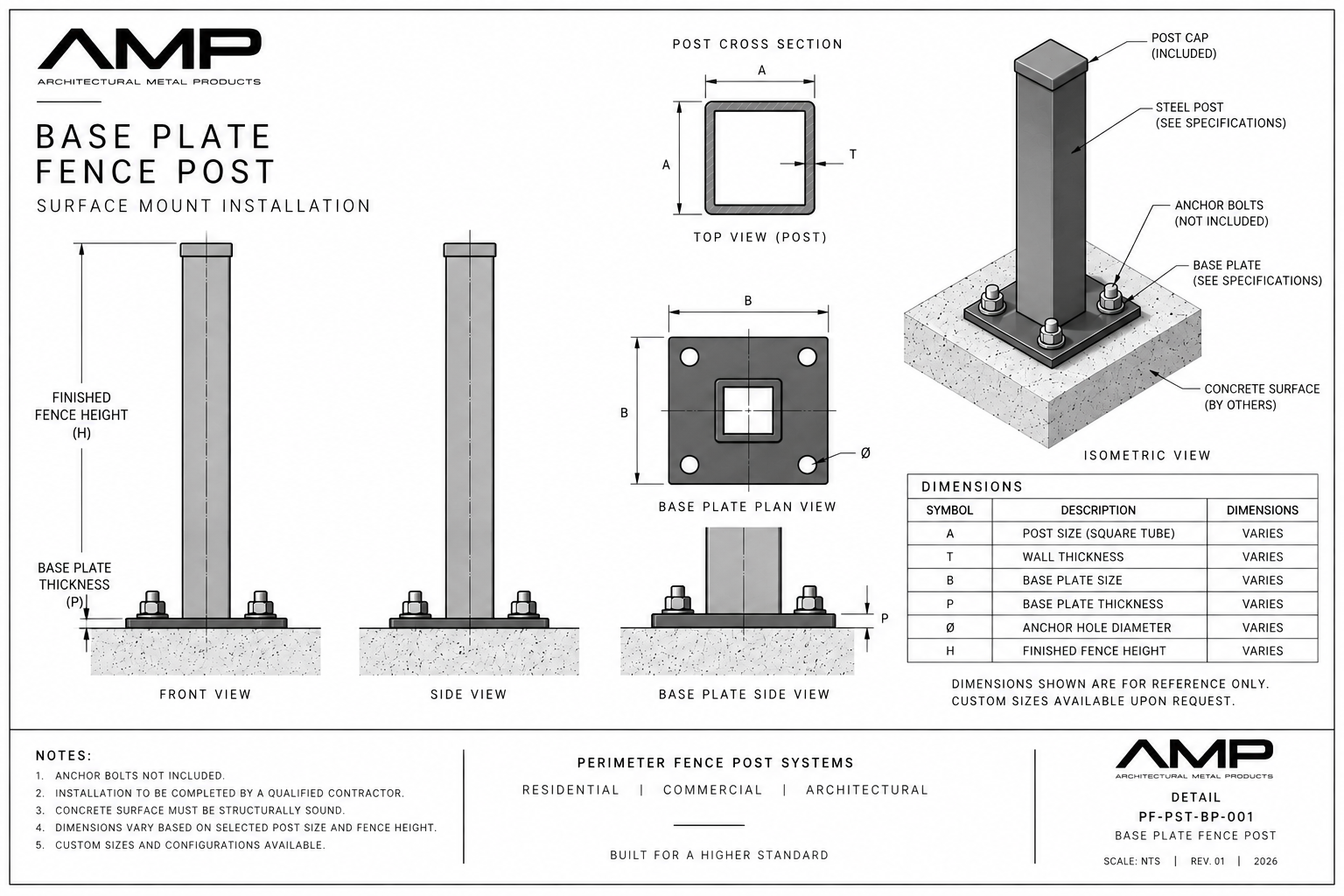

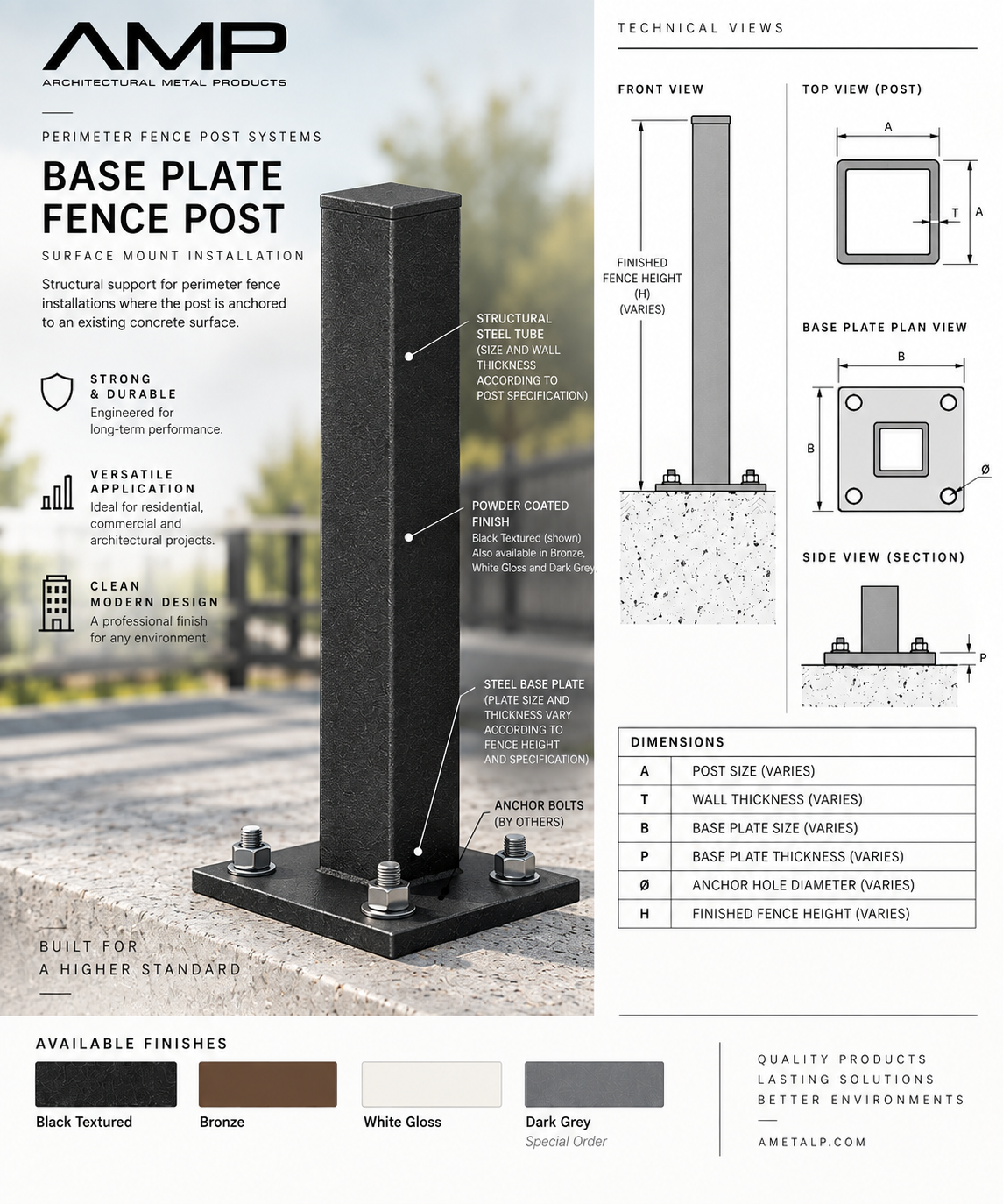

Each post combines a square structural steel tube with a welded steel base plate sized according to the selected fence height. End, Line, Corner and Custom Angle configurations are available so the post system can coordinate with straight runs, terminations and directional changes.
Base Plate Post System
Designed for installation over suitable concrete substrates
Unlike Set-In-Ground posts, Base Plate posts terminate at the finished mounting surface. A welded steel plate at the bottom of the post provides the interface for project-specific mechanical anchors.
As fence height increases, AMP increases the post wall thickness and base plate size to provide a more substantial post configuration for the corresponding fence system.
Final anchor type, anchor diameter, embedment, edge distance, concrete strength and substrate capacity depend on the actual project conditions and must be verified before installation.

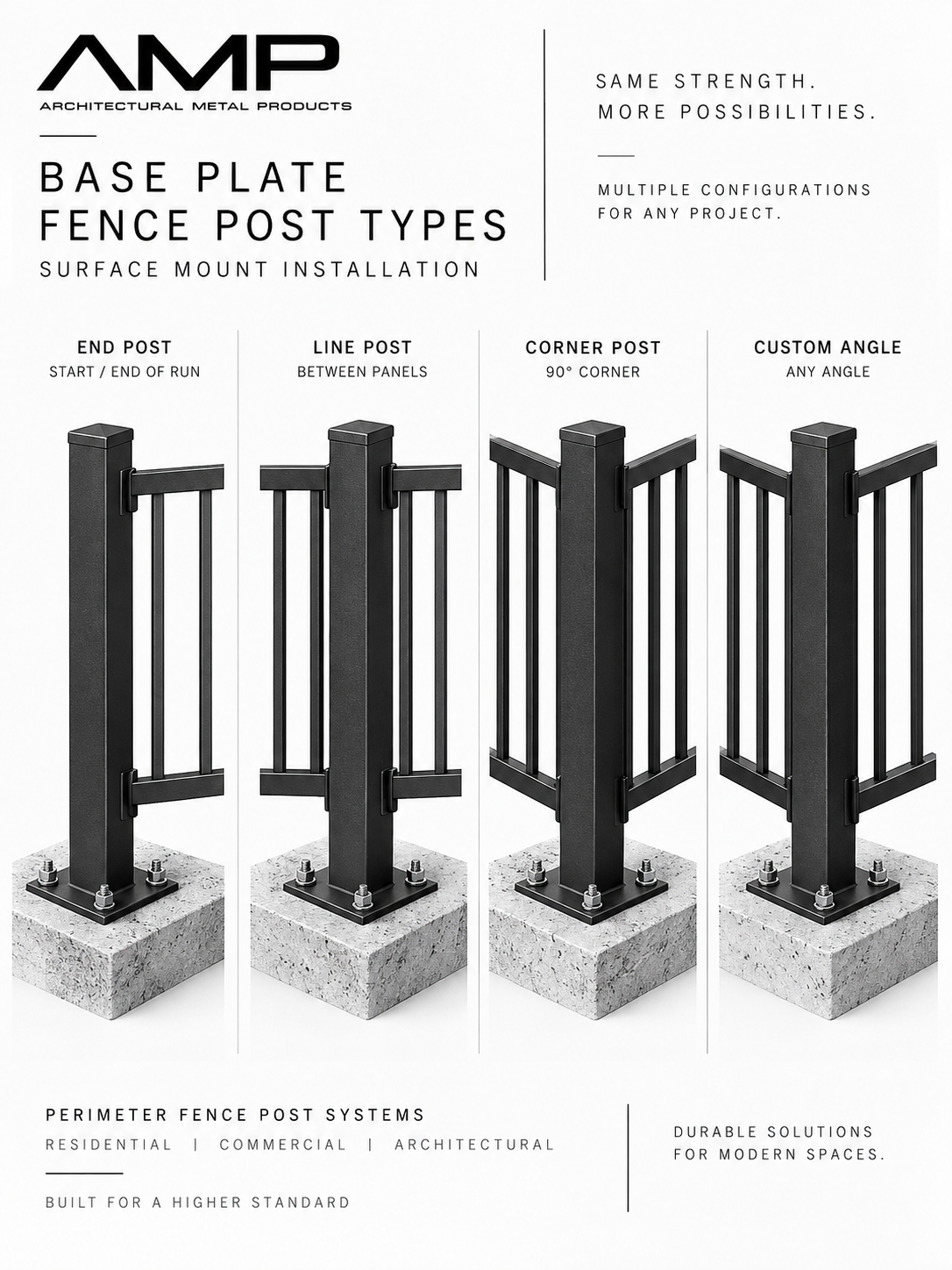

Available Post Types
Choose the post type according to its position in the perimeter fence layout.
End Post
Used at the beginning or termination of a fence run.
Line Post
Used between two adjacent fence panels in a straight run.
Corner Post
Used where the perimeter fence changes direction at a standard corner.
Custom Angle
Fabricated for project-specific directional changes where a standard corner does not match the required angle.
Base Plate Post Construction by Fence Height
AMP coordinates the post tube and welded base plate with the selected fence height. The following configurations represent the standard Base Plate catalog system.
| Fence Height | Post Construction | Base Plate |
|---|---|---|
| 36″ | 2″ × 2″ tubular steel · 14 ga | 6″ × 6″ × 1/4″ |
| 48″ | 2″ × 2″ tubular steel · 14 ga | 6″ × 6″ × 1/4″ |
| 60″ | 2″ × 2″ tubular steel · 11 ga | 7″ × 7″ × 3/8″ |
| 72″ | 2″ × 2″ tubular steel · 3/16″ wall | 8″ × 8″ × 3/8″ |
96″ Fence Height
Base Plate mounting is not offered as a standard catalog configuration at 96″ fence height. For 96″ perimeter fence systems, use the applicable Set-In-Ground post configuration or contact AMP regarding project-specific requirements.
Typical Base Plate Applications
The presence of an existing concrete surface does not automatically confirm that the substrate is suitable for the fence installation. Concrete thickness, condition, reinforcement, edge distance and anchor capacity must be evaluated for the actual project.
Anchorage and Installation Requirements
Anchors Are Project-Specific
Concrete anchors are not universally interchangeable. Anchor manufacturer, anchor diameter, embedment depth, edge distance, spacing and installation procedure depend on the supporting concrete and project loads.
Therefore, the installer, contractor or responsible design professional must verify the appropriate anchorage system before installation.
Structural Verification
Fence height, panel length, wind exposure, site conditions, substrate capacity and other project-specific factors can affect the required anchorage and supporting structure.
Where required, the responsible project professional must verify that the selected post, anchors and supporting concrete are appropriate for the final installation.
Available Finishes
Base Plate Fence Posts are available in the same architectural finish families used throughout the AMP Perimeter Fence Collection.
|
Black Textured
|
Bronze
|
White Gloss
|
Dark Gray
Special Order
|
Base Plate Fence Post Specifications
| Product | AMP Perimeter Fence Base Plate Post |
| Material | Welded structural steel |
| Post Types | End · Line · Corner · Custom Angle |
| Standard Fence Heights | 36″ · 48″ · 60″ · 72″ |
| 96″ Height | Not offered as a standard Base Plate catalog configuration |
| Mounting Method | Mechanical anchorage to suitable concrete substrate |
| Anchors | Project-specific · not included as a universal standard |
| Available Finishes | Black Textured · Bronze · White Gloss · Dark Gray (Special Order) |
Need a Set-In-Ground Post?
For installations where the post must extend below grade into a concrete footing, use the AMP Set-In-Ground Post system instead.
Complete Your Perimeter Fence System
Select the post height, post type and finish that correspond with the AMP perimeter fence configuration being ordered. For custom layouts or unusual installation conditions, send AMP the project information before ordering.
Architectural Metal Products
Perimeter fence systems and custom architectural metalwork for residential, commercial and architectural projects.
Protective Primer + Powder Coat Finish
Before the final powder-coat finish is applied, this AMP steel product receives a protective primer coat. The primer improves coating adhesion and adds an additional layer of corrosion protection as part of AMP's two-stage exterior finish system.
