PRODUCT DESCRIPTION

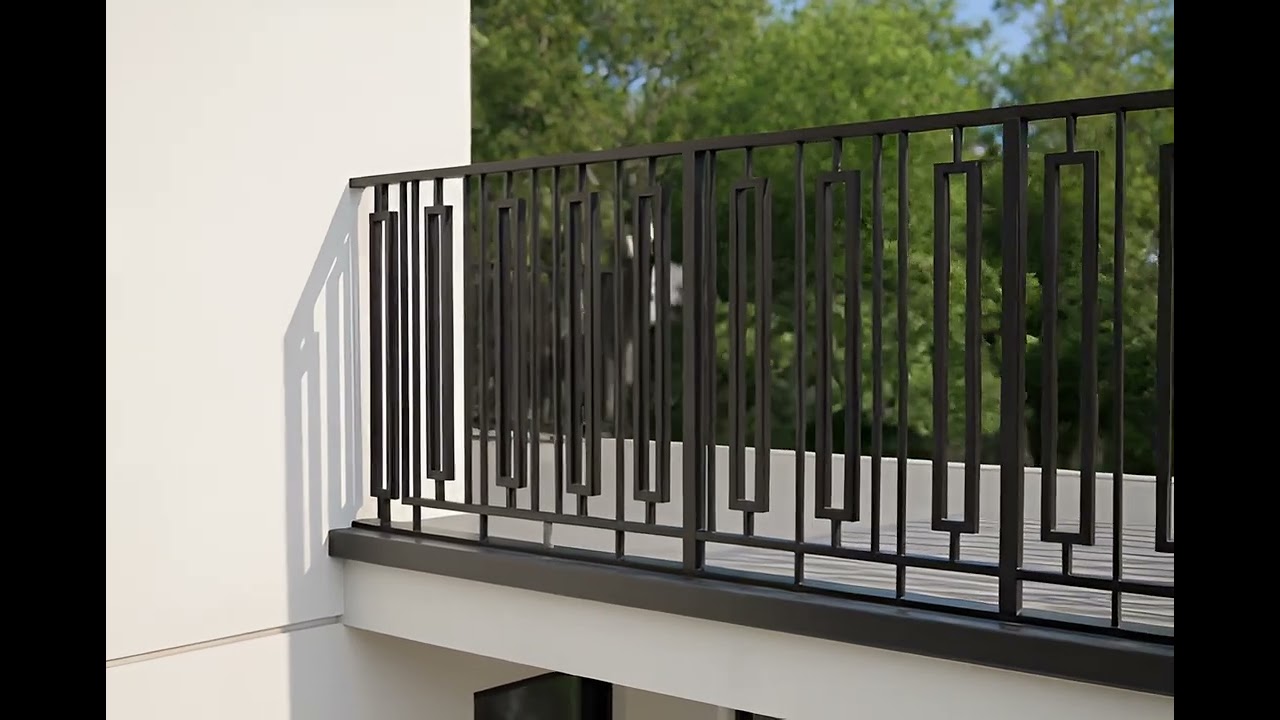

Cadence Bar Balcony Railing
A geometric welded steel balcony railing built around a repeating tubular pattern. Cadence Bar creates a clean architectural rhythm that adds visual interest while maintaining an open, balanced profile.
Repeating geometry creates a distinctive architectural rhythm.
Cadence Bar uses 1″ tubular steel elements arranged into a repeating geometric pattern. The alternating forms create movement across the railing without making the composition feel visually heavy.
A 3″ × 1″ rectangular tubular steel frame defines the perimeter and gives the design a strong, clean boundary. Each assembly is fabricated to the selected project dimensions and finish.
Built to your project dimensions —
not adapted from a one-size-fits-all railing.
How Cadence Bar is fabricated
Specifications
| Frame | 3″ × 1″ rectangular tubular steel |
| Infill / Bars | 1″ tubular steel |
| Design | Repeating geometric tubular pattern |
| Construction | Shop-fabricated welded steel assembly |
| Standard Lengths | 36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″ |
| Available Heights | 18″ · 24″ · 30″ · 36″ · 42″ |
| Decorative Heights | 18″ · 24″ · 30″ — Architectural / Decorative Use Only |
| Projection | 8″ Standard · Custom Projection Available |
| Available Finishes | Black · White · Dark Gray · Bronze |
Standard dimensions, with custom flexibility.
Decorative Heights — 18″, 24″ & 30″
These height configurations are manufactured strictly for decorative and architectural accent applications.
The 18″, 24″ and 30″ height options are not intended for use as guardrails, balcony guards, pool barriers, fall-protection systems or other life-safety applications.
Decorative-height products are intended as architectural accents only and must not be represented or installed as structural safety barriers.
The buyer, contractor, installer or design professional is responsible for confirming the intended application, structural attachment, required loads, opening limitations and compliance with applicable federal, state and local requirements before installation.
Designed around the architecture.
Standard dimensions provide a starting point, but they do not define the limits of Cadence Bar. AMP can coordinate custom length, height and projection when required by the project.
Project-specific variations may also be reviewed when the architectural opening, mounting condition or surrounding design requires a different configuration.
Four architectural finishes
|
Black
|
White
|
Dark Gray
|
Bronze
|
Final railing height, opening limitations, structural loads, mounting method, substrate and attachment requirements depend on the intended application and applicable local requirements. Code-regulated applications must be evaluated for the specific project before fabrication and installation.
Have a custom size in mind?
Send us your length, height and desired projection for a project quote, or explore the complete AMP Classic Railing collection before making your selection.
ADDITIONAL INFORMATION
| Weight | N/A |
|---|---|
| Length | 36", 42", 48", 54", 60", 72", 84" |
| Height | 30", 36", 42" |
| Width | 8" |
| Color | Black, Bronce, White, Dark Gray |
PRODUCT USE NOTICE — DECORATIVE HEIGHTS (18″, 24″, 30″)
The 18″, 24″, and 30″ height options of this model are designed and manufactured strictly for decorative and architectural accent purposes. These dimensions do not meet, and are not intended to meet, applicable U.S. building code requirements for guardrails, balcony railings, pool barriers, or any other fall-protection or life-safety application.
These products must not be installed, modified, or represented as a structural balcony, guardrail, safety barrier, or load-bearing component under any circumstance. They are not designed to withstand human weight, lateral force, or impact loads associated with safety-rated railing systems.
It is the sole responsibility of the buyer, installer, contractor, or end user to determine the suitability of this product for its intended application, to verify compliance with all applicable federal, state, and local building codes prior to installation, and to install the product into adequate structural backing in accordance with standard construction practices.
AMP — Architectural Metal Products expressly disclaims any liability for injury, property damage, or code violation arising from the use, modification, or installation of this product in a manner inconsistent with its intended decorative purpose.
