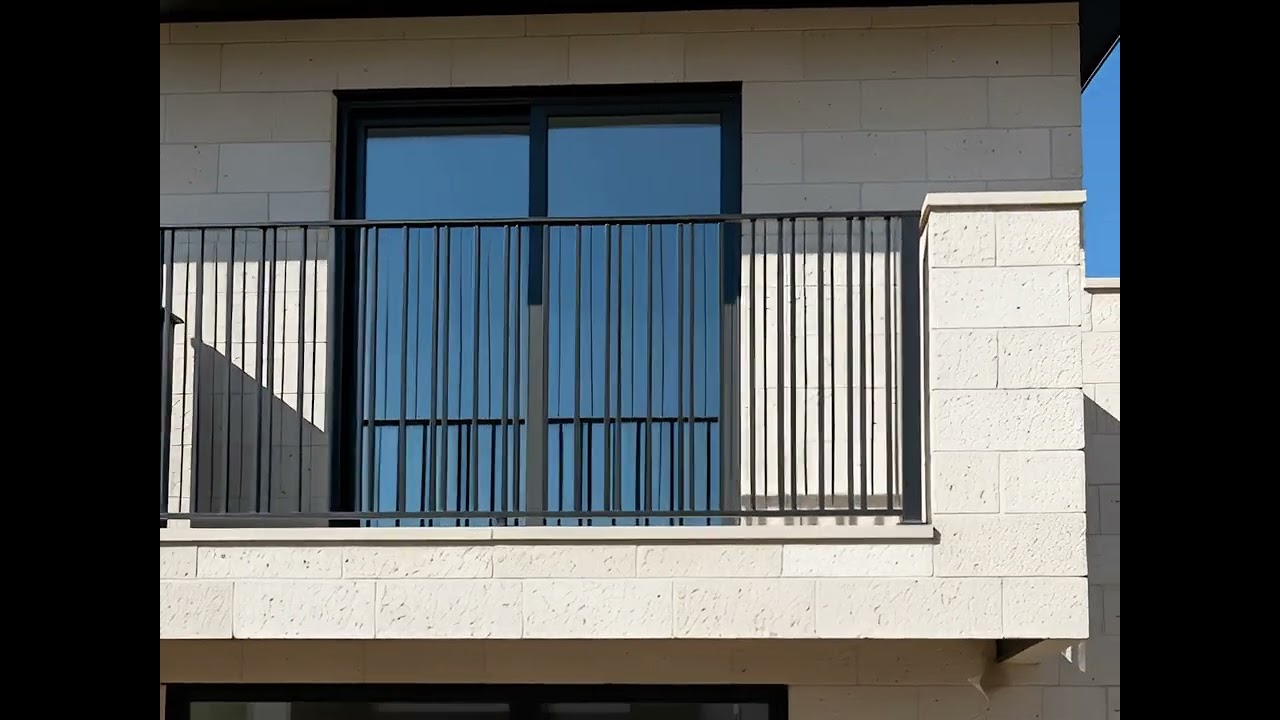

Straight Edge Balcony Railing
Price range: $1,039.00 through $1,839.00
A substantial welded steel balcony railing built with solid flat-bar framing and matching vertical flat bars for a crisp, monolithic appearance. Available in standard and custom dimensions, including custom length, height and projection.
CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ | CUSTOM SIZE AVAILABLEÂ |Â CUSTOM STYLE AVAILABLEÂ |Â REQUEST TO QUOTEÂ |
PRODUCT DESCRIPTION
Straight Edge Balcony Railing
A substantial steel balcony railing built around the crisp profile of solid flat bar. Straight Edge uses the same material language through both the perimeter and vertical infill, creating a unified architectural composition with greater visual weight.
Solid flat bar creates a sharper, more substantial profile.
Straight Edge uses 2″ × 1/4″ solid steel flat bar for both the perimeter frame and vertical infill. The consistent material creates clean edges, strong vertical repetition and a more monolithic appearance than conventional tubular construction.
Because the frame and infill share the same flat-bar profile, the railing reads as one continuous fabricated composition rather than a perimeter filled with separate pickets. Each assembly is fabricated to the selected project dimensions and finish.
Built to your project dimensions —
not adapted from a one-size-fits-all railing.
How Straight Edge is fabricated
Specifications
| Frame | 2″ × 1/4″ solid steel flat bar |
| Vertical Bars | 2″ × 1/4″ solid steel flat bar |
| Design | Unified solid flat-bar composition |
| Construction | Shop-fabricated welded steel assembly |
| Standard Lengths | 36″ · 42″ · 48″ · 54″ · 60″ · 72″ · 84″ · 96″ |
| Available Heights | 18″ · 24″ · 30″ · 36″ · 42″ |
| Decorative Heights | 18″ · 24″ · 30″ — Architectural / Decorative Use Only |
| Projection | 8″ Standard · Custom Projection Available |
| Available Finishes | Black · White · Dark Gray · Bronze |
Standard dimensions, with custom flexibility.
Decorative Heights — 18″, 24″ & 30″
These height configurations are manufactured strictly for decorative and architectural accent applications.
The 18″, 24″ and 30″ height options are not intended for use as guardrails, balcony guards, pool barriers, fall-protection systems or other life-safety applications.
Decorative-height products are intended as architectural accents only and must not be represented or installed as structural safety barriers.
The buyer, contractor, installer or design professional is responsible for confirming the intended application, structural attachment, required loads, opening limitations and compliance with applicable federal, state and local requirements before installation.
Designed around the architecture.
Standard dimensions provide a starting point, but they do not define the limits of Straight Edge. AMP can coordinate custom length, height and projection when required by the project.
Project-specific variations may also be reviewed when the architectural opening, mounting condition or surrounding design requires a different configuration.
Four architectural finishes
|
Black
|
White
|
Dark Gray
|
Bronze
|
Final railing height, opening limitations, structural loads, mounting method, substrate and attachment requirements depend on the intended application and applicable local requirements. Code-regulated applications must be evaluated for the specific project before fabrication and installation.
Have a custom size in mind?
Send us your length, height and desired projection for a project quote, or explore the complete AMP Classic Railing collection before making your selection.
ADDITIONAL INFORMATION
| Weight | N/A |
|---|---|
| Length | 36", 42", 48", 54", 60", 72", 84" |
| Height | 30", 36", 42" |
| Color | Black, Bronce, White, Dark Gray |
| Width | 8" |
PRODUCT USE NOTICE — DECORATIVE HEIGHTS (18″, 24″, 30″)
The 18″, 24″, and 30″ height options of this model are designed and manufactured strictly for decorative and architectural accent purposes. These dimensions do not meet, and are not intended to meet, applicable U.S. building code requirements for guardrails, balcony railings, pool barriers, or any other fall-protection or life-safety application.
These products must not be installed, modified, or represented as a structural balcony, guardrail, safety barrier, or load-bearing component under any circumstance. They are not designed to withstand human weight, lateral force, or impact loads associated with safety-rated railing systems.
It is the sole responsibility of the buyer, installer, contractor, or end user to determine the suitability of this product for its intended application, to verify compliance with all applicable federal, state, and local building codes prior to installation, and to install the product into adequate structural backing in accordance with standard construction practices.
AMP — Architectural Metal Products expressly disclaims any liability for injury, property damage, or code violation arising from the use, modification, or installation of this product in a manner inconsistent with its intended decorative purpose.
